Stop building from outdated drawings.

The latest drawings and wall type specifications — on every worker’s phone.

My Drawings gives construction teams one simple place to access drawings, revisions and wall type specifications on site. Online or offline. Multi-site. Built for construction.

Start a company See how it works

The problem

How do you know your men are working from the latest drawing?

Drawings live in the cabin. Revisions change. The floor is far from the printer. A dryliner should not have to guess which pack is current — or walk back to check.

For the worker

Find the drawing quickly. Open the revision. Check the Wall Type. Keep building.

For the manager

Control what the crew is looking at. Publish a revision. Close access when someone leaves.

For the company

Fewer mistakes from old prints. Less wasted time. Every site keeps its own pack.

See it

From the drawing to the wall type — in seconds.

My Drawings1 Medlock Street
A-102
A-102Ground Floor Plan · Rev C
A-201First Floor Plan · Rev B
S-101Foundation Plan · Rev D
A-102Rev C · Ground Floor
PLAN

Pinch. Pan. The drawing stays on the phone.

WT01BBedroom to corridor
90min fire
55dB
110mm
4.1m max
New revision A-102 is now Rev D
A-102Ground Floor Plan · Rev D

The crew can open the new revision from the notification.

  1. SearchWorker finds A-102 on the phone.
  2. OpenThe current drawing. Zoom on site.
  3. Wall TypeFire, acoustic, thickness, build-up.
  4. RevisionManager publishes. Crew gets a notification.

A 30-second walk-through of the live app. Replace this with your video when you have it.

Before / after

The cabin, or the phone.

Before My Drawings

  • Printed drawings in the cabin
  • Searching through folders of PDFs
  • Old revisions still on site
  • Walking back to the office
  • No signal in the basement or core
  • Workers asking which drawing is current

With My Drawings

  • Drawings on every phone
  • The latest revision, searchable
  • A notification when a drawing is added or updated
  • Wall Type next to the drawing
  • Works offline after download
  • A separate pack for every site

On the phone

Easy to use.
Hard to get wrong.

Search → Open → Check the Wall Type → Build

That is the job. Not a folder. Not a guess. The drawing and the specification that belong to that wall.

  1. Search the drawing
  2. Open the revision
  3. Check fire, acoustic, thickness, build-up
  4. Build
My Drawings Level 11 · 1 Medlock Street
Update
Search drawings…
AllArchitecturalStructuralMEP
A-102Ground Floor Plan · Rev C
A-201First Floor Plan · Rev B
S-101Foundation Plan · Rev D
E-110Lighting Layout Ground · Rev A

Wall Types — the spec that belongs to that wall

This is not only a PDF viewer. Drawing → Wall Type → exact build-up → fire rating → acoustic rating → thickness.

  • Per site. Never mixed with another job
  • Swipe from a drawing into Wall Types
  • The construction detail stays on the phone, offline
WT01B Bedroom to corridor
WT01B construction detail
90min fire
55dB
110mm
4.1m max

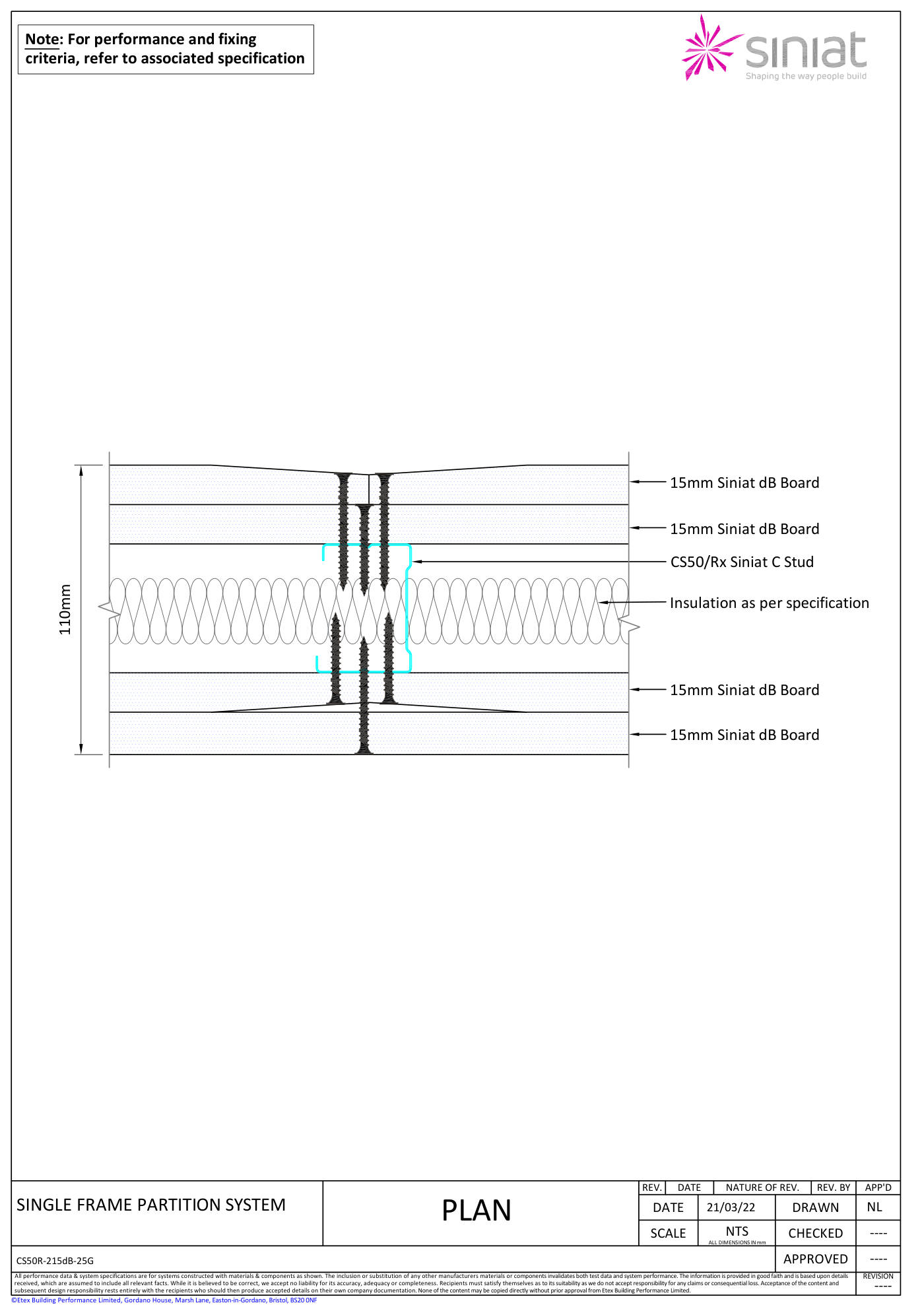

15mm Siniat dB Board · CS50/Rx @ 600 · 25mm GMW

On site

No signal? No problem.

Download drawings before going to the floor. My Drawings keeps downloaded drawings and specifications available when the site has poor or no mobile signal.

Your drawings stay with you.

Revisions

A new revision shouldn’t become a new problem.

  1. Manager uploads Rev DFrom the admin panel.
  2. Crew gets a notificationOn iPhone and Android.
  3. They can open Rev DThe new drawing is on the phone. We do not lock the old file out of the device — we put the current revision in front of them.

For the manager

One place to control every site’s drawing pack.

Upload. Publish. Organise by category. Appoint a site manager. Close access when someone leaves the company.

Welcome · Company admin

  • 18 Drawings
  • 3 Sites
  • 24 Users

Multi-site

One company. Every site under control.

Site A Manchester

24 drawings

Site B Liverpool

37 drawings

Site C Leeds

18 drawings

Each site has its own drawings, Wall Types, workers, site manager and access. A worker on Site A does not see Site B.

Access

Managers control who sees each site.

Workers sign in with email and the site access code. The code gets them onto that job. The company admin and site manager can close a user’s access if they leave. That is the control. Not a password to remember on the floor.

How it starts

Upload. Publish. The crew uses it.

  1. Create the companyThe company admin opens the account.
  2. Add the siteOne job. Its own pack.
  3. Upload drawings and Wall TypesFrom the admin panel.
  4. Invite the workersThey install the app and join with the site code.

Who it is for

Built for the people on site.

Dryliners, supervisors and site managers can access the drawings and specifications they need without going back to the cabin. The company pays. The crew builds.

Get the app

On the App Store and Google Play.

Install My Drawings. Then sign in with the site access code.

Download on theApp Store Get it onGoogle Play

FAQ

What companies ask before they pay.

What happens if someone leaves and still has the site code?

Managers control who has access to each site. Close that user’s access from the admin panel. The code gets people onto a job; the company decides who stays on it.

Does it work when there is no signal?

Yes. Download the drawings and Wall Types first. They stay on the phone in basements, lift shafts, cores and remote sites.

Can one company run more than one site?

Yes. Each site has its own drawings, Wall Types, workers and site manager. Nothing mixes between jobs.

Is it on the App Store and Google Play?

Yes. My Drawings is a mobile app on both. Same company account on iPhone and Android.

Who uploads the drawings?

The company admin or site manager, from the administration panel. Workers only open what has been published for their site.

Put the latest drawings on every phone.

Start your first site. We can help you load the first pack.
